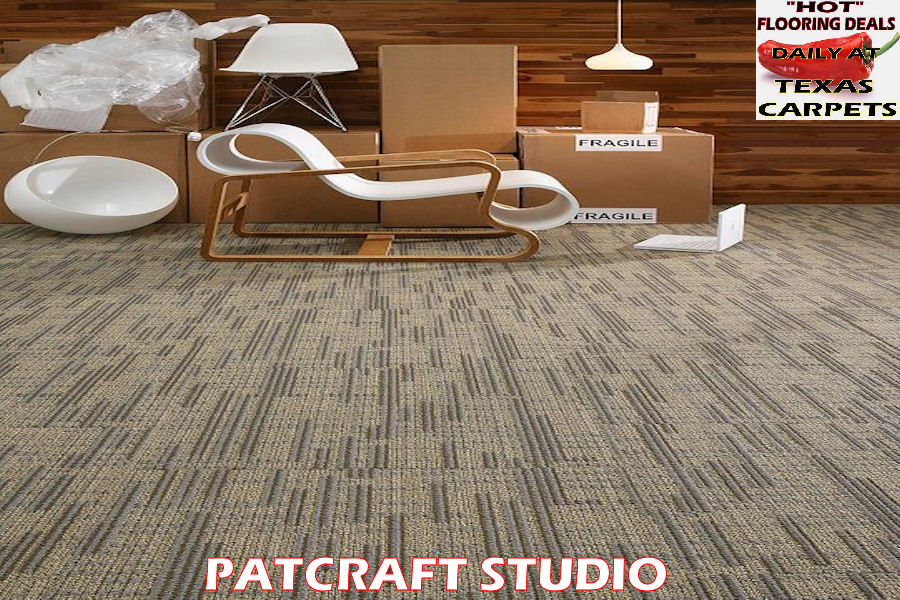

PATCRAFT
STUDIO
( WITH SPECIAL )
All Patcraft running line flooring
products are priced by
" QUOTE REQUEST ONLY "
_________________________
CARPET SPECIALS
FIRST QUALITY PRODUCT

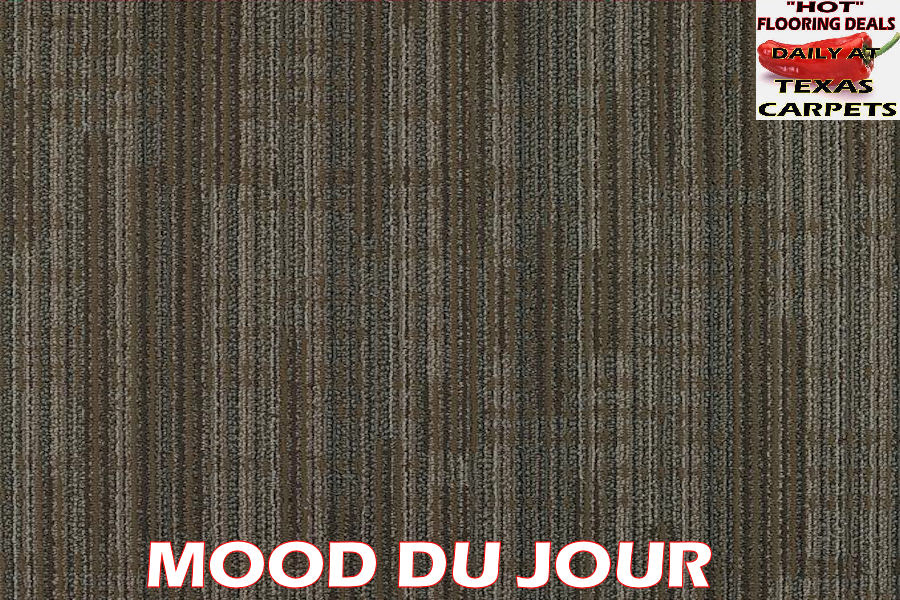

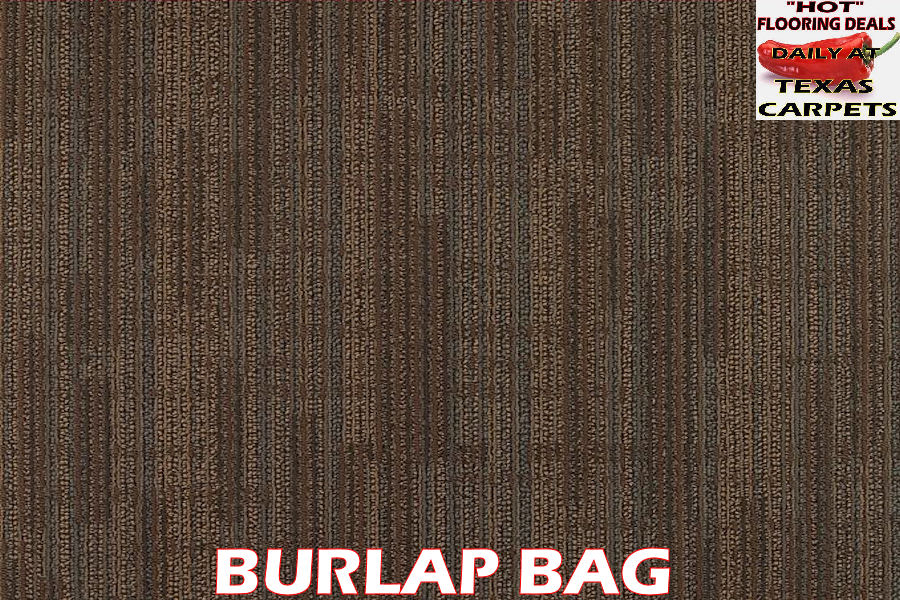

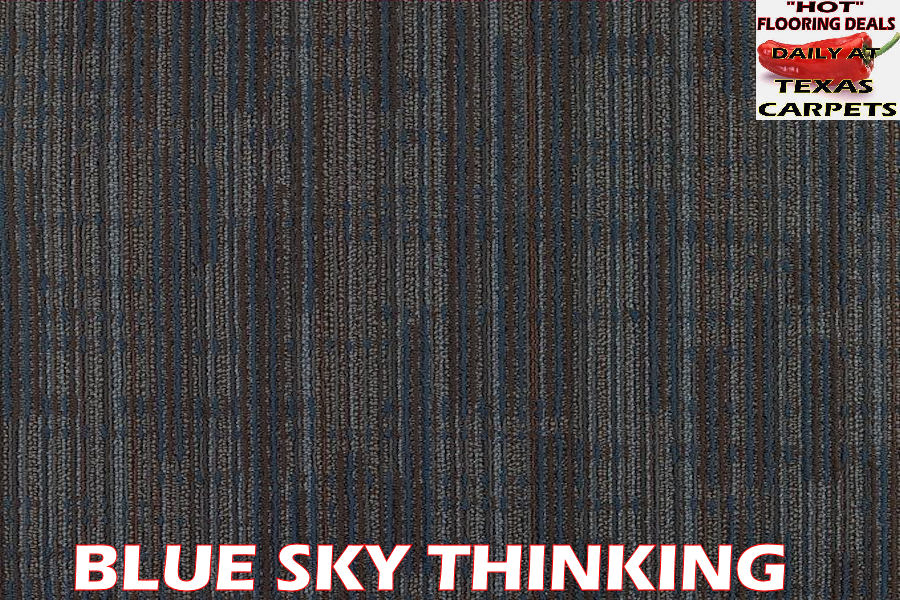

COLORS TEXTED RED
CTNS - $2.99 / sq. ft.
LOTS - $2.69 / sq. ft.
EMAIL FOR DETAILS
sales@texascarpets.com
_________________________
102624 R
Studio Modular
Product Specifications
Collection Name Construkt
Style Number Z6475
Product Type Modular
Construction Multi-Level Pattern Loop
Fiber Type Eco Solution Q® SD Nylon
Dye Method 100% Solution Dyed
English Metric
Gauge 1/12 47.24 per 10 cm
Stitches Per Inch 9.5 37.40 per 10 cm
Tufted Pile Height 3/32" low - 7/32" high 2.38mm - 5.56mm
Tufted Yarn Weight 17.0 576.40 g/m²
Finished Pile Thickness 0.121 3.07 mm
Total Thickness 0.271 6.88 mm
Product Size 24" x 24" 60.96 cm x 60.96 cm
Average Density 5058 9.42 kilotex
Installation Pattern Repeat None
Protective Treatments SSP® Shaw Soil Protection
Primary Backing Non-Woven Synthetic
Secondary Backing EcoWorx® Tile
GSA Approved Product Yes GSA Approved
Performance Specifications
Traffic Class Heavy (TARR)
Antimicrobial Assessment Passes (AATCC-174)
(When installed using Shaw 5036 adhesive)
Methenamine Pill Test Passes (DOCFF-1-70)
Radiant Panel Class I (ASTM E-648)
NBS Smoke Less than 450 (ASTM-E-662)
Electrostatic Propensity Less than 3.5 kV (AATCC-134)
CRI Green Label Plus GLP9968
ADA Compliance This product meets the guidelines as set forth in the Americans with Disabilities Act for minimum static coefficient of friction of 0.6 for accessible routes.
Warranty Information
Lifetime Commercial Limited
EMAIL TEXAS CARPETS FOR PRICING
ON ALL PATCRAFT FLOORING PRODUCTS!
