GRASS VALLEY 20 AH016PRODUCT SPECIFICATIONSPRODUCT TYPE Commercial Grade Luxury Vinyl Tile (Glue Down)OVERALL GAUGE 2.5 mmWEAR LAYER 20 mil (0.5 mm)FINISH M-Force™ 1 Enhanced UrethaneCOLORS AVAILABLE 14SIZE 8” x 48” (203.2 mm x 1,219.2 mm)12” x 24” (304.8 mm x 609.6 mm)PACKAGING SF/CTN 8” x 48” 34.67 sf/ctn 65 ctns/pallet; 458.51 oz/ctn12” x 24” 36 sf/ctn; 60 ctns/pallet; 476.10 oz/ctnCLASSIFICATION ASTM F1700 - Class III, Type A - Smooth, Type B - EmbossedSQUARENESS ASTM F2421 - Passes - ±0.10” maxSIZE AND TOLERANCE Tile ASTM F2055; Plank ASTM F2421 Passes - ±0.16”/linear footTHICKNESS ASTM F386 - Passes - as specified ±0.005”FLEXIBILITY ASTM F137 - Passes - 1” mandrelDIMENSIONAL STABILITY ASTM F2199 - Passes - 0.020”/linear foot maxSTATIC LOAD LIMIT ASTM F970 (modified) - 1,500 psiRESIDUAL INDENTATION ASTM F1914 - Passes - Average less than 8%, maximum single reading 10%SLIP RESISTANCE ASTM F1914 - Passes - Average less than 8%, maximum single reading 10%RESISTANCE TO CHEMICALS ASTM F925 - Passes - No more than a slight change in surface dulling, surface attack, or stainingRESISTANCE TO LIGHT ASTM F1515 - Passes - ΔE < 8RESISTANCE TO HEAT ASTM F1514 - Passes - ΔE < 8CRITICAL RADIANT FLUX ASTM E648 - Class 1 (>0.45 W/cm2)SMOKE DENSITY ASTM E662 Part A - Less than 450INSTALLATION Glue DownADHESIVE M95.0 Resilient Flooring, MS160 Spray or M700 Pressure SensitiveOPTIONAL UNDERLAYMENT Mohawk AccuSoundTMCERTIFICATION FloorScore® CertifiedWARRANTIES Limited 10-Year Commercial WarrantyLimited 25-Year Residential WarrantyEMAIL TEXAS CARPETS FOR PRICINGON ALL MOHAWK FLOORING PRODUCTS!sales@texascarpets.com
GRASS VALLEY 20 AH016
PRODUCT SPECIFICATIONS
PRODUCT TYPE Commercial Grade Luxury Vinyl Tile (Glue Down)
OVERALL GAUGE 2.5 mm
WEAR LAYER 20 mil (0.5 mm)
FINISH M-Force™ 1 Enhanced Urethane

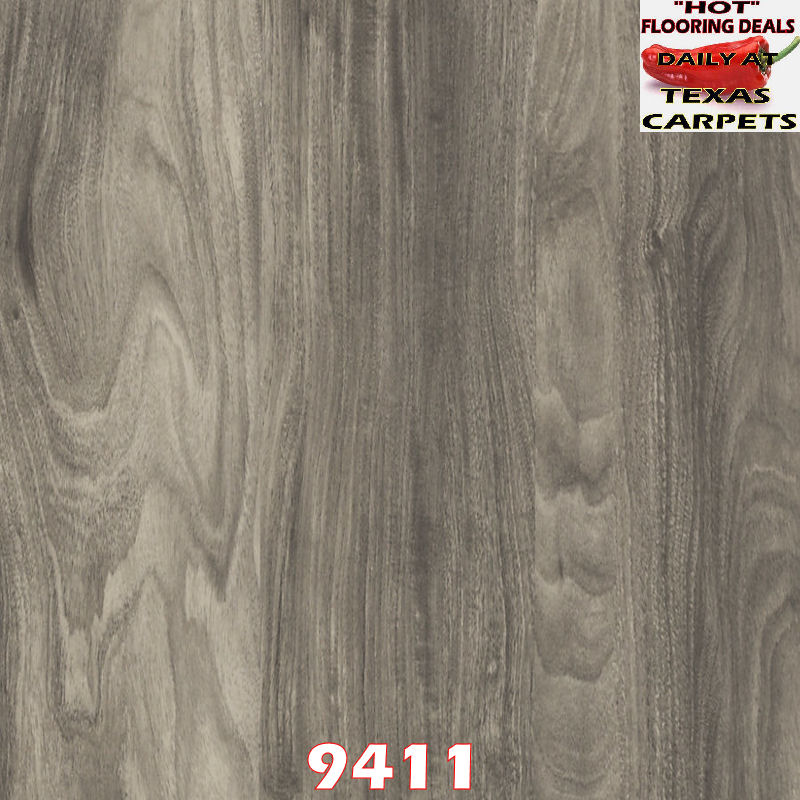

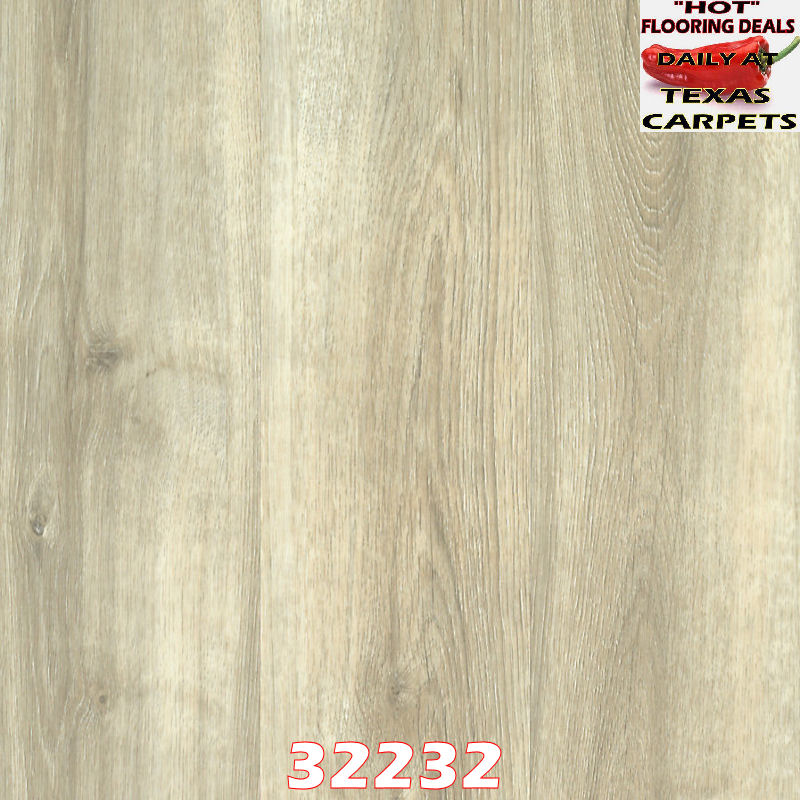

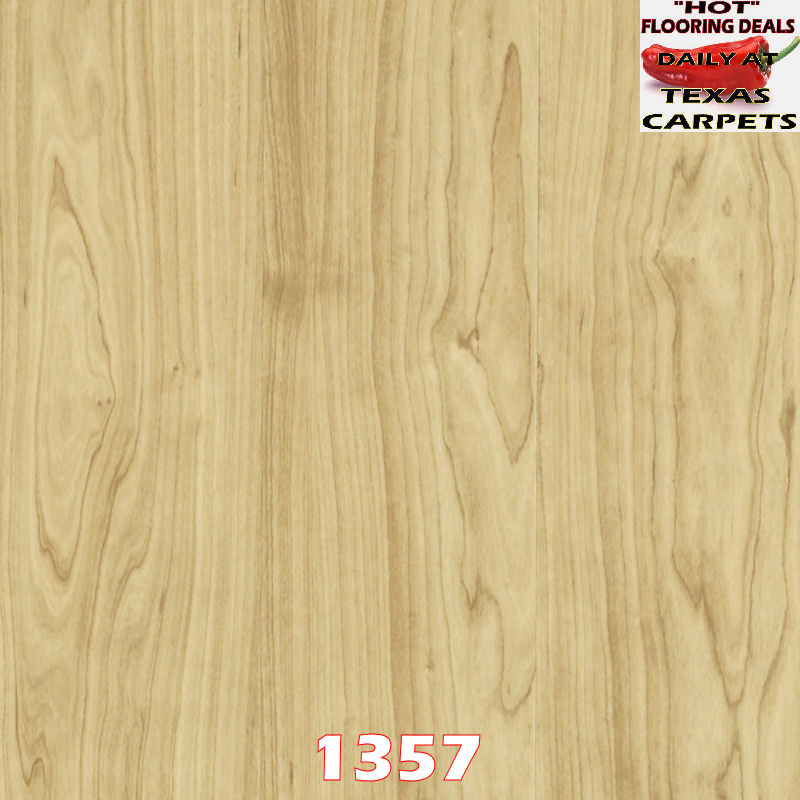

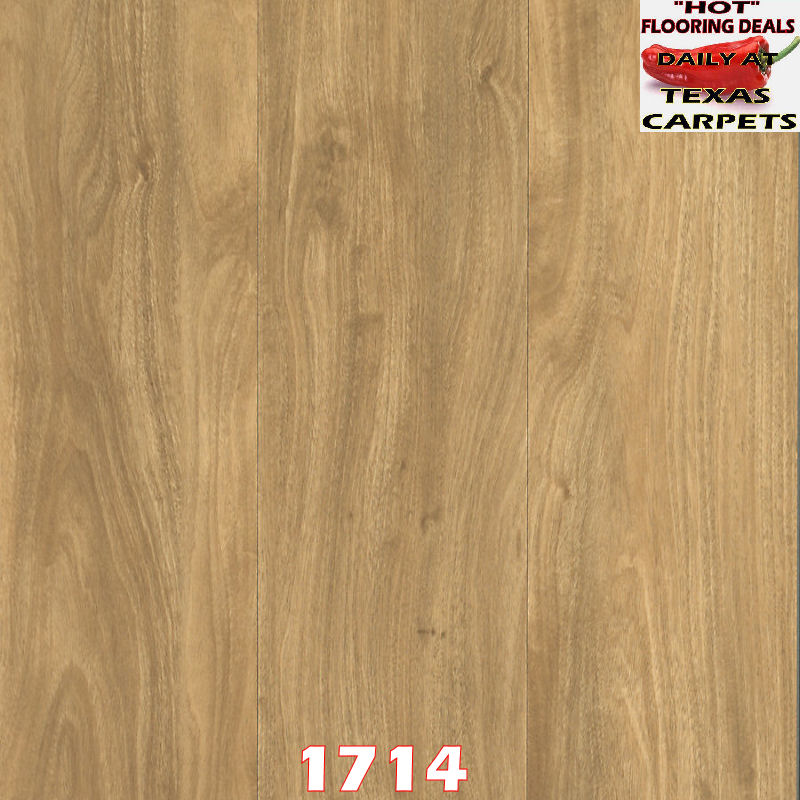

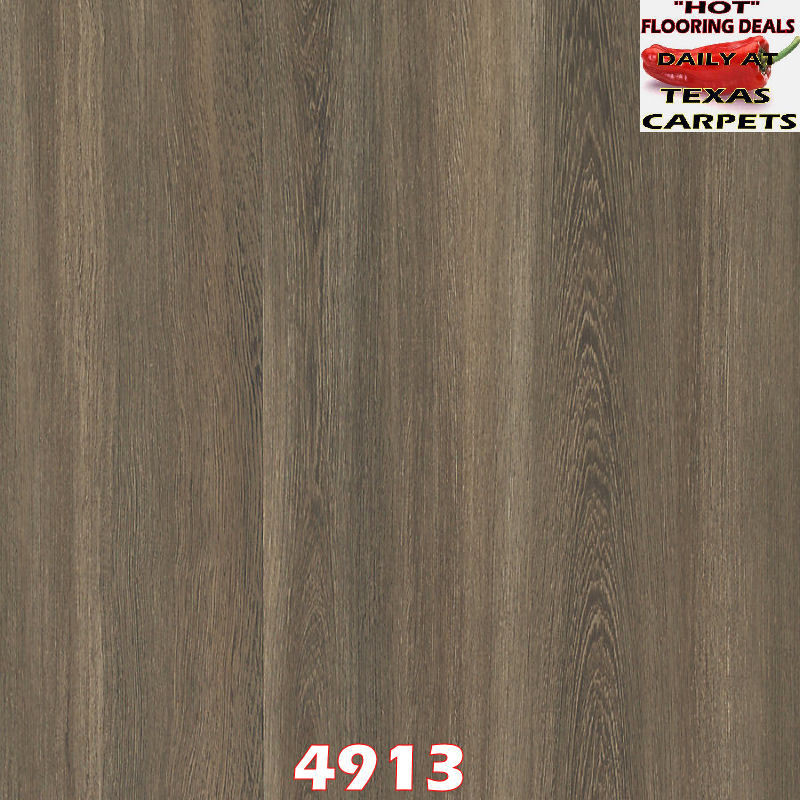

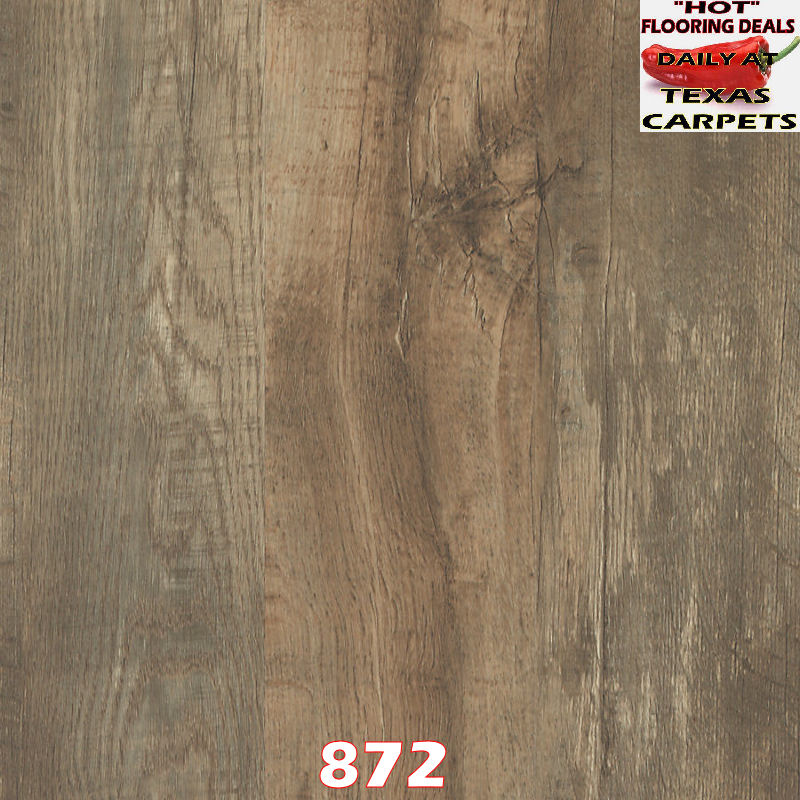

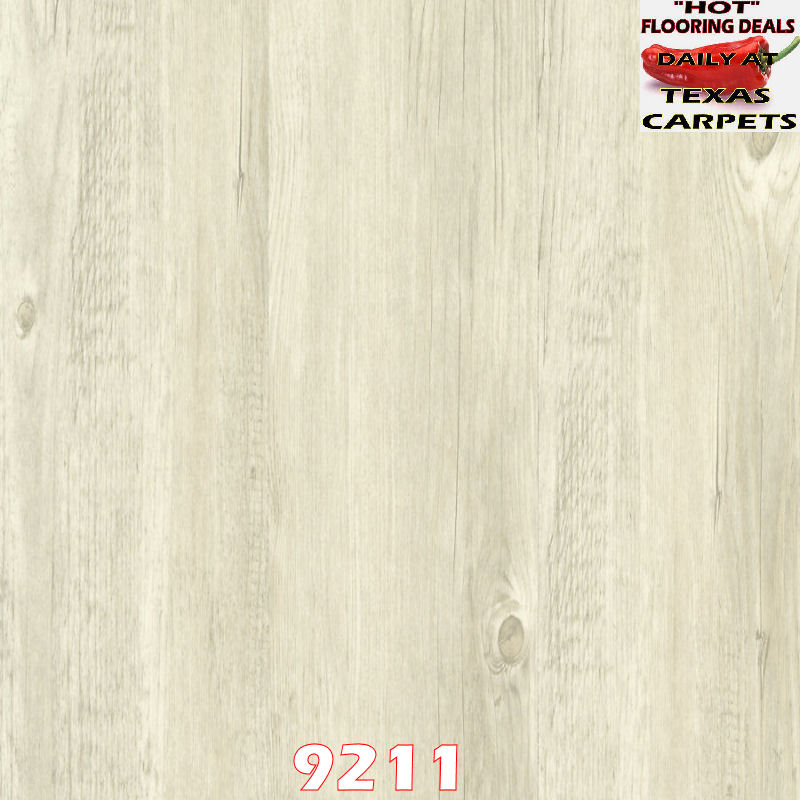

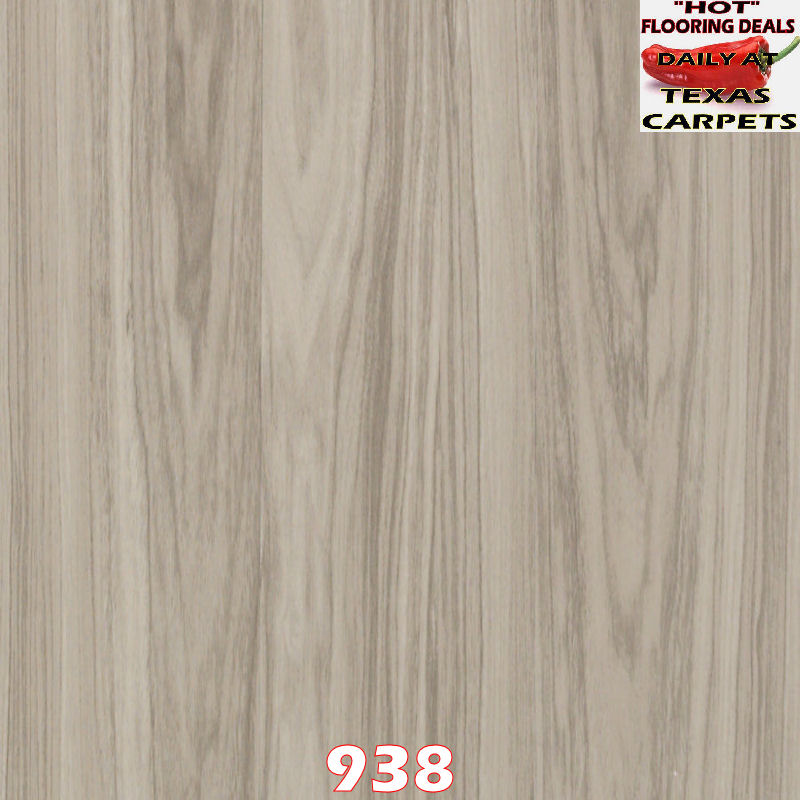

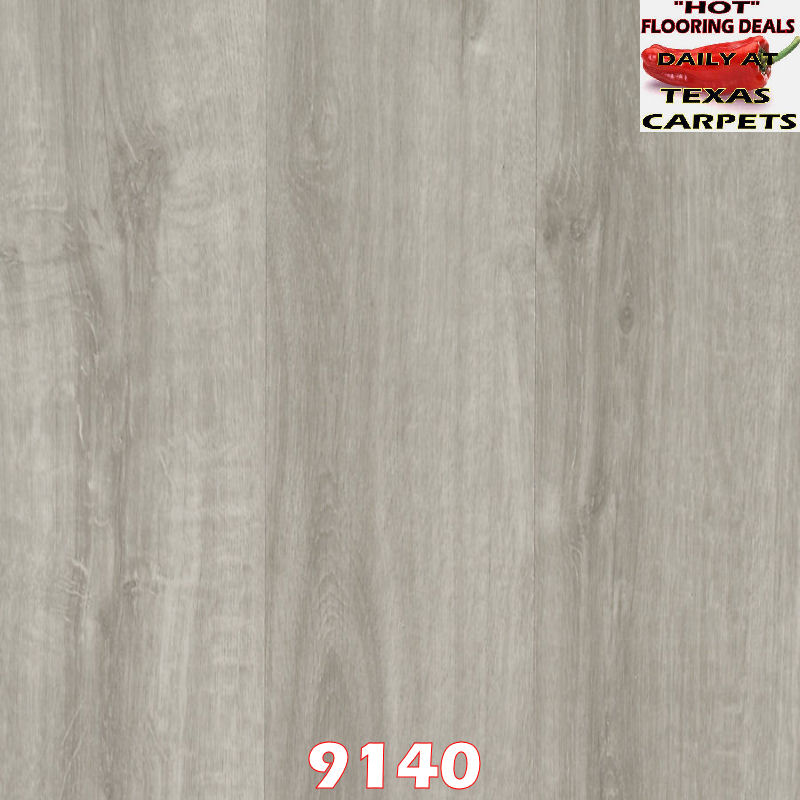

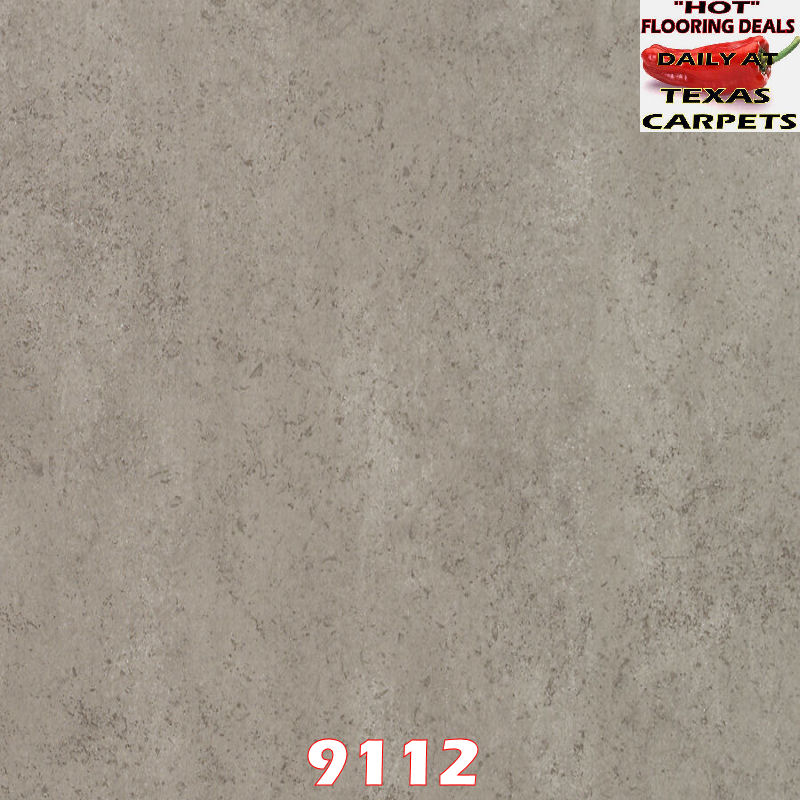

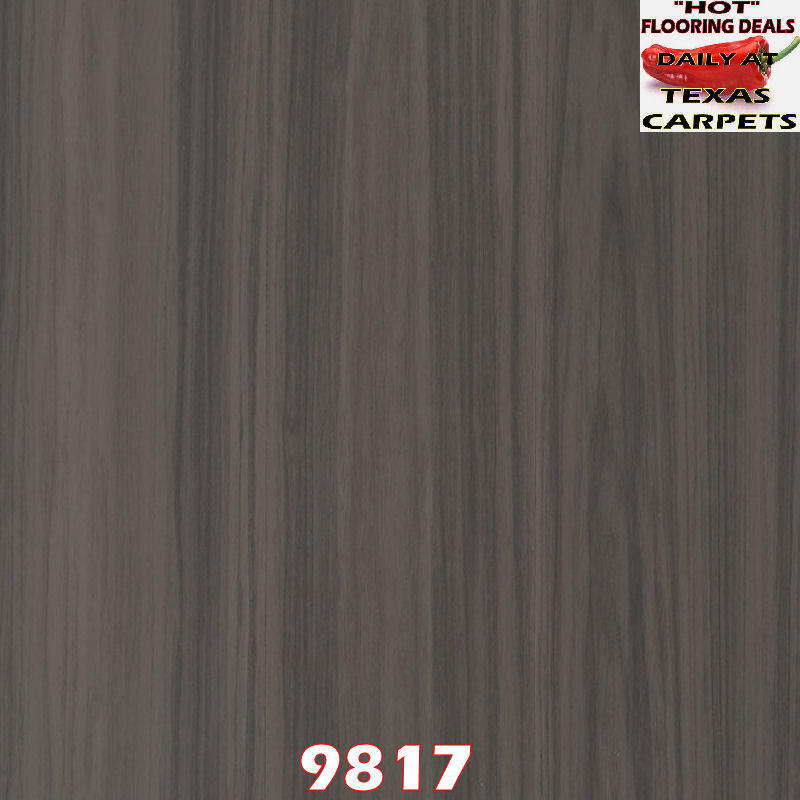

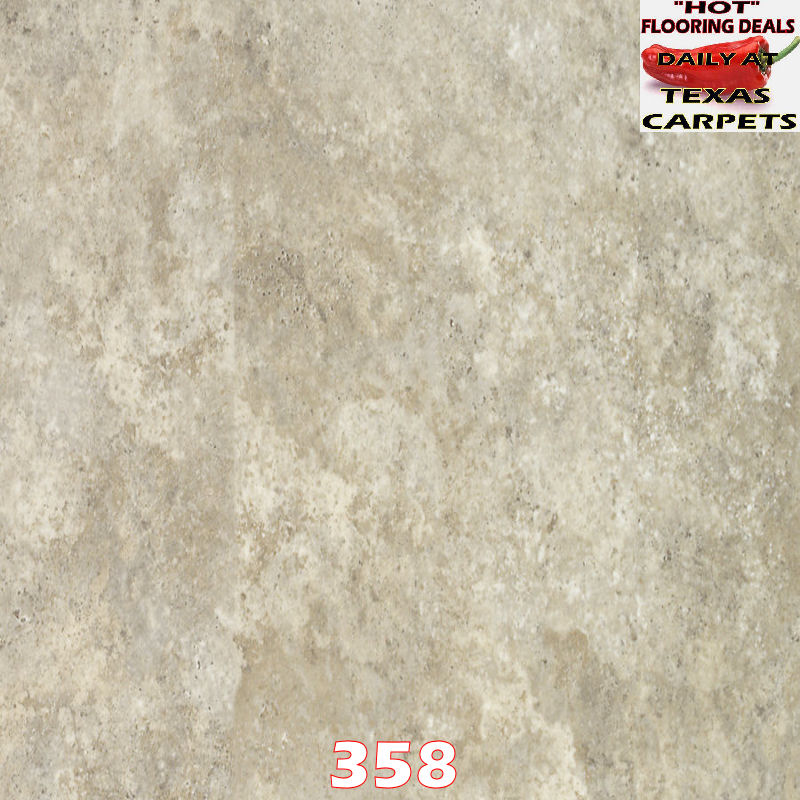

COLORS AVAILABLE 14
SIZE 8” x 48” (203.2 mm x 1,219.2 mm)
12” x 24” (304.8 mm x 609.6 mm)
PACKAGING SF/CTN 8” x 48” 34.67 sf/ctn 65 ctns/pallet; 458.51 oz/ctn
12” x 24” 36 sf/ctn; 60 ctns/pallet; 476.10 oz/ctn
CLASSIFICATION ASTM F1700 - Class III, Type A - Smooth, Type B - Embossed
SQUARENESS ASTM F2421 - Passes - ±0.10” max
SIZE AND TOLERANCE Tile ASTM F2055; Plank ASTM F2421 Passes - ±0.16”/linear foot
THICKNESS ASTM F386 - Passes - as specified ±0.005”
FLEXIBILITY ASTM F137 - Passes - 1” mandrel
DIMENSIONAL STABILITY ASTM F2199 - Passes - 0.020”/linear foot max
STATIC LOAD LIMIT ASTM F970 (modified) - 1,500 psi
RESIDUAL INDENTATION ASTM F1914 - Passes - Average less than 8%, maximum single reading 10%
SLIP RESISTANCE ASTM F1914 - Passes - Average less than 8%, maximum single reading 10%
RESISTANCE TO CHEMICALS ASTM F925 - Passes - No more than a slight change in surface dulling, surface attack, or staining
RESISTANCE TO LIGHT ASTM F1515 - Passes - ΔE < 8
RESISTANCE TO HEAT ASTM F1514 - Passes - ΔE < 8
CRITICAL RADIANT FLUX ASTM E648 - Class 1 (>0.45 W/cm2
)
SMOKE DENSITY ASTM E662 Part A - Less than 450
INSTALLATION Glue Down
ADHESIVE M95.0 Resilient Flooring, MS160 Spray or M700 Pressure Sensitive
OPTIONAL UNDERLAYMENT Mohawk AccuSoundTM
CERTIFICATION FloorScore® Certified
WARRANTIES Limited 10-Year Commercial Warranty
Limited 25-Year Residential Warranty
